Description
The Kink Carve 16” bike is the younger sibling of our Kicker 18”, and it ensures every age, and every height rider can find a perfect-fitting Kink bike. Kids are getting into BMX younger and younger, and we love it. The Carve comes in a great Gloss Iridescent Black colourway, which is complemented by black components throughout and chrome handlebars.
Properly proportioned geometry and components create a modern, yet comfortable ride, suited for the rider who isn’t ready for the bump up to a larger 18” bike yet. Still stacked with great parts, the Carve is kitted out with 7” Kink T700 bars, a short reach 40mm Mission top load stem, rock solid 3-piece tubular Chromoly cranks with sealed Mid bottom bracket, a sealed integrated headset, and modern tread design 2.4” tyres.
Suitable for 5-7 years old kids
| Toptube Length | 16.5″ |
| Chainstay Length | 11.25″ |
| Headtube Angle | 74.5° |
| Seattube Angle | 71° |
| Standover Height | 6.75″ |
| Bottom Bracket Height | 9.75″ |
| Fork Offset | 32mm |
TECH SPECS
| FRAME Kink Carve 100% Hi-Ten Steel | PEDALS Kink Hemlock |
| FORK Kink Stryker 4130 Chromoly Steerer Tapered Fork Legs | CHAIN Mission 410 |
| BARS Kink T700 7” 100% Hi-Ten Steel | SPROCKET Mission Rank 25T |

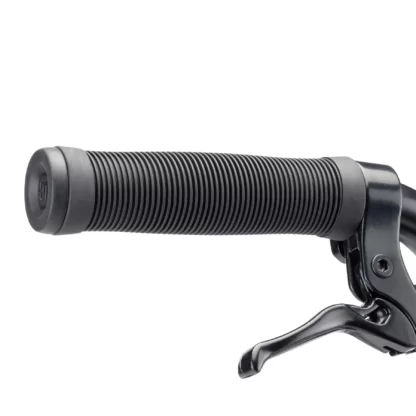

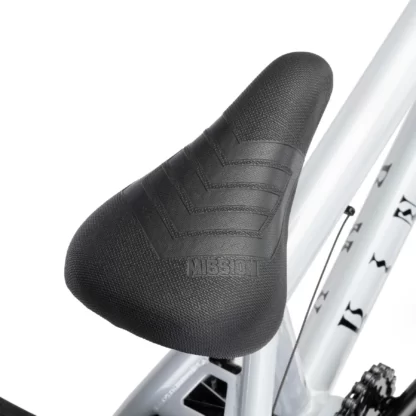

| GRIPS Mission Helix Mini | SEAT Mission Cypress Mini Combo |
| STEM Mission Topload 40mm | SEAT POST Mission Combo Steel Post |
| HEADSET Mission Sealed Integrated (41.8 x 45) | SEAT CLAMP Mission Slim Clamp |
| BRAKE LEVER Mission Mini | FRONT HUB Mission Covert Unsealed 3/8″ Axle |
| BRAKE CABLE Mission L1 Linear | REAR HUB Mission Function Semi-Sealed Cassette 14mm |
| BRAKES Mission Cease V2 | DRIVER 9T |

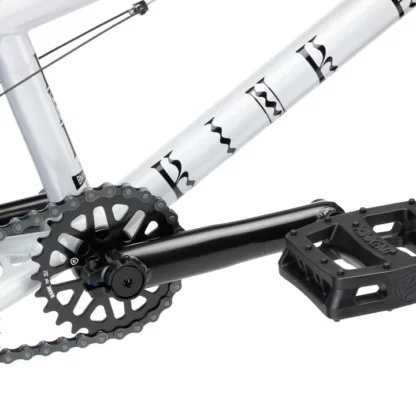

| CRANKS Mission Triumph 3pc Tubular Chromoly 140mm – 8 Spline | RIMS Mission X7 |

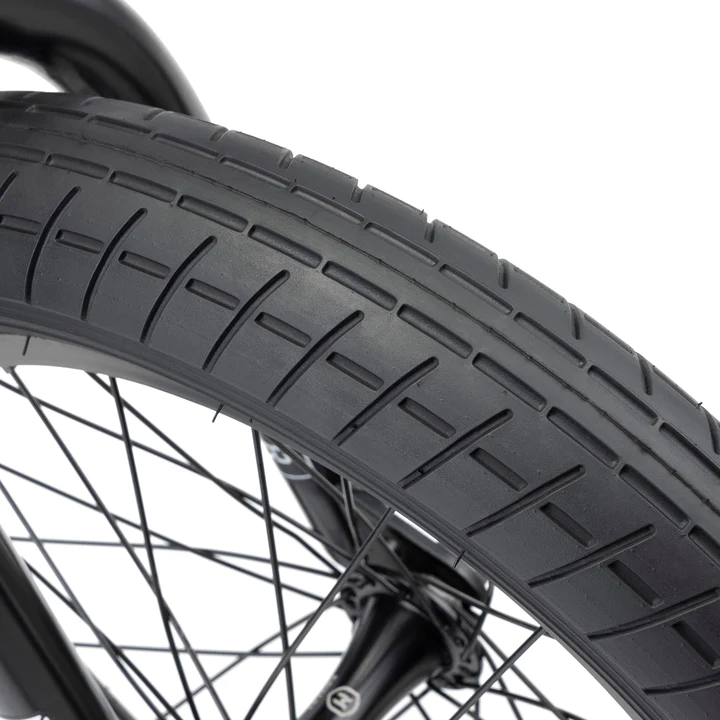

| BOTTOM BRACKET Sealed Mid 19mm | TIRES Mission Tracker 16×2.4″ |
| PEGS N/A | WEIGHT 22lb 9oz |
