Description

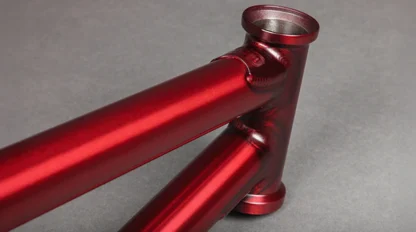

The ALVX AF+ is the latest version of Alex Donnachie’s signature ALVX frame. It features the same super tech geometry and ultra-short rear end, but now includes an updated invest-cast chainstay yoke, which maintains tire clearance while creating a more rigid rear triangle. Plus, it looks pretty sick!
| Toptube lengths | 20.6″ |
| Headtube angle | 75.5° |
| Headtube length | 117mm |
| Seattube angle | 71° |
| Rear end length | 12.5″ |
| BB Height | 11.7″ |
| Standover height | 8.7″ |
| Weight | 5lbs |
| Brake mounts | none – brakeless |
| Tubing | Sanko Japanese seamless 4130 CrMo / triple butted |
| Colours | AQUAMARINE |
